The modern vehicle is no longer just a mechanical machine; it is a mobile data center. A standard mid-range internal combustion engine (ICE) vehicle contains over 1,500 individual wires, totaling approximately 1.5 miles in length. For Electric Vehicles (EVs), this complexity increases exponentially due to high-voltage requirements and thermal management needs.
Selecting the correct automotive wire harness materials is a critical engineering decision that impacts vehicle safety, weight, and long-term durability. In the automotive environment, components must withstand extreme temperature fluctuations, constant vibration, and exposure to corrosive fluids. This guide breaks down the technical specifications of the materials that form the "nervous system" of the automobile.

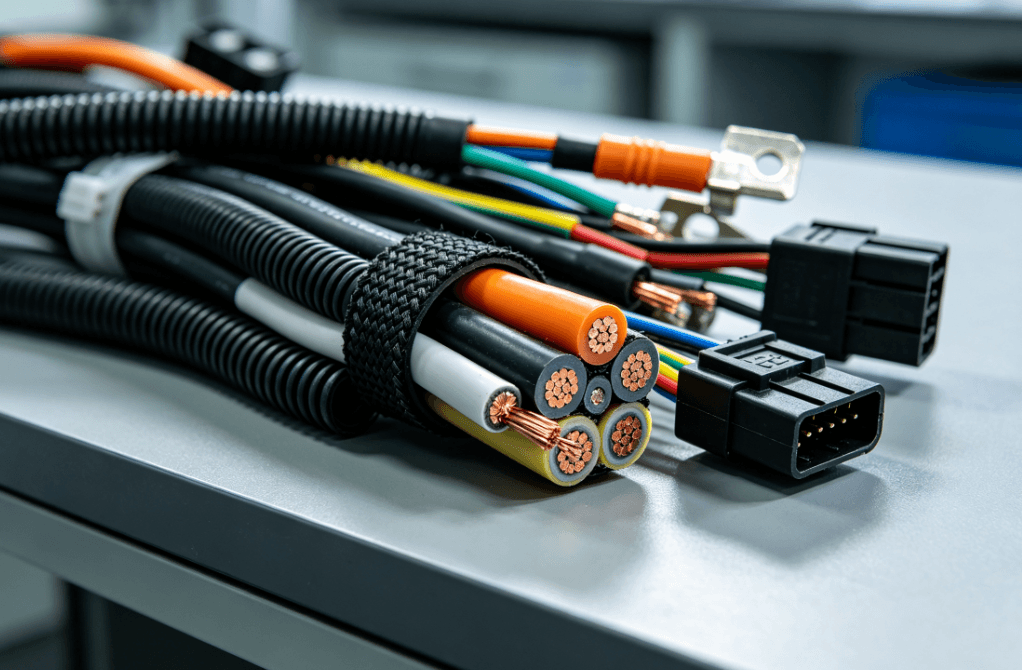

The primary function of any wire harness is to transmit electrical power or signals. The choice of conductor material dictates the harness’s weight and conductivity.
Copper remains the industry standard for automotive wiring materials due to its superior electrical conductivity and ductility. In most signal-level wiring and high-current applications, annealed copper is preferred. It offers the best balance of performance and ease of termination at the connector pins.
With the industry-wide push for lightweighting, particularly in EVs, aluminum has gained traction for large-gauge battery cables. While aluminum is roughly 30% lighter than copper, it requires larger cross-sectional areas to achieve the same conductivity. Engineers must also account for aluminum’s tendency to oxidize and its different thermal expansion coefficients when designing terminal crimps.
In applications where high mechanical strength or vibration resistance is paramount—such as sensor leads near the wheel wells—specialized copper alloys (e.g., Copper-Tin or Copper-Silver) are utilized to prevent fatigue-induced wire breakage.

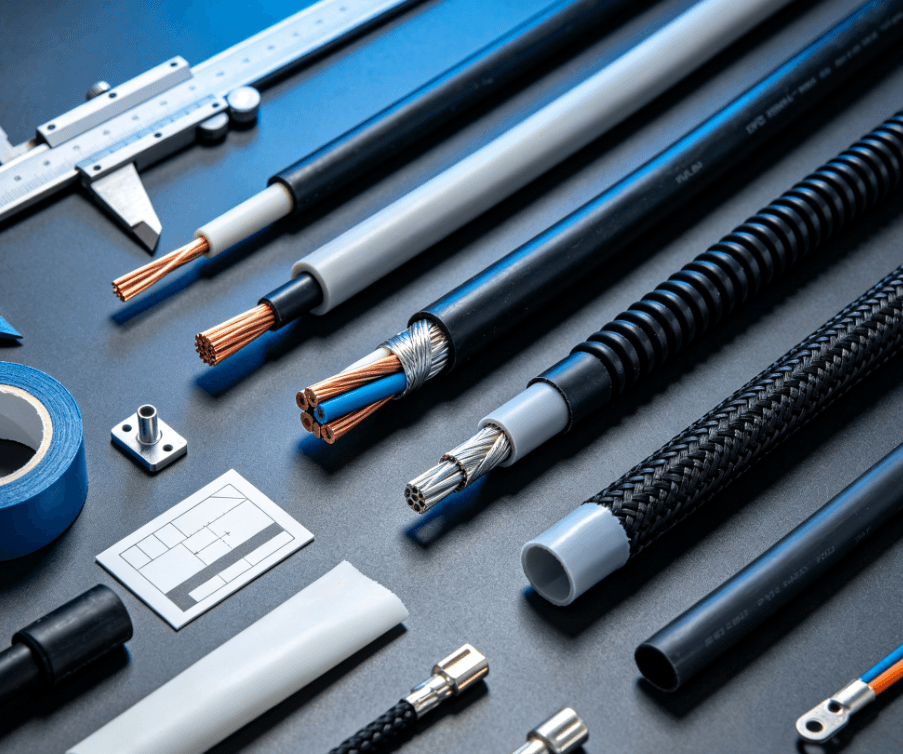

Insulation is the most diverse category within wire harness materials. The choice of polymer depends largely on the "Zone" where the harness will be installed (e.g., Engine Bay vs. Cabin).
| Material Type | Temperature Rating | Primary Use Case | Key Characteristics |
|---|---|---|---|
| PVC (Polyvinyl Chloride) | -40°C to 105°C | Cabin wiring, lighting | Cost-effective, flexible, standard resistance. |
| XLPE (Cross-linked PE) | -40°C to 125°C+ | Engine bay, powertrain | High heat resistance, excellent abrasion resistance. |
| Silicone Rubber | -40°C to 200°C+ | High-voltage EV cables | Superior flexibility, extreme thermal stability. |
| Teflon (ETFE/FEP) | -70°C to 200°C | Performance racing, sensors | Chemically inert, very thin wall thickness possible. |

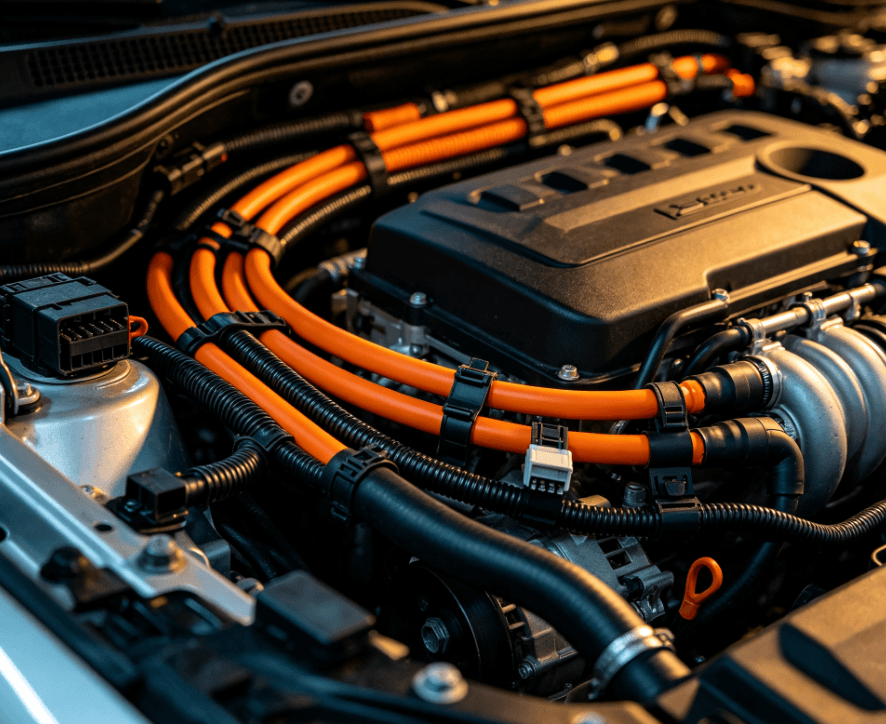

In modern automotive engineering, there is a significant shift from standard PVC to Cross-linked Polyethylene (XLPE). Through a chemical or radiation process, the polymer chains in XLPE are tied together, preventing the material from melting at high temperatures. This is vital for harnesses positioned near exhaust manifolds or turbochargers.
Beyond the individual wire insulation, the entire bundle requires a secondary layer of protection against mechanical wear and electromagnetic interference (EMI).
The point of connection is often the most vulnerable part of the harness. The materials here must ensure low contact resistance over the life of the vehicle.
When specifying materials for an automotive wire harness, engineers follow a strict derating logic based on the environment.
Automotive standards (like ISO 6722) classify wires into temperature classes (Class A through Class H). A wire rated for Class B (100°C) is sufficient for a door panel but would fail rapidly if placed near the engine block, where Class D (150°C) or higher is required.
Materials must be tested for compatibility with brake fluid, engine oil, coolant, and battery acid. For instance, while some plastics offer great heat resistance, they may swell or degrade when exposed to certain synthetic oils.
With the rise of ADAS (Advanced Driver Assistance Systems) and high-definition cameras, shielding materials have become a priority. Foil shields and tinned copper braids are used to protect high-speed data lines (Automotive Ethernet) from EMI generated by the vehicle's ignition system or electric motors.
The selection of automotive wiring materials is not arbitrary. Compliance with global standards ensures that materials meet minimum safety thresholds:
Manufacturers like Soarcable adhere to these rigorous specifications, ensuring that custom harness assemblies utilize the appropriate "thin-wall" or "thick-wall" insulation required for modern space-constrained vehicle architectures.
